atvi - AT220V

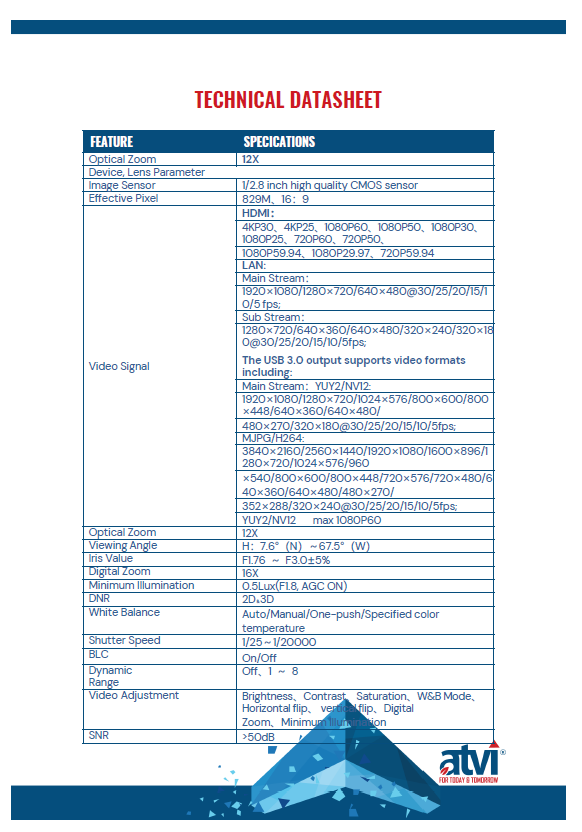

FEATURE SPECIFICATIONS
1. Optical Zoom 12X
2. Device, Lens Parameter
3. Image Sensor      1/2.8 inch high quality CMOS sensor
4. Effective Pixel 829M、16：9
     Video Signal
HDMI：
    4KP30、4KP25、1080P60、1080P50、1080P30、
    1080P25、720P60、720P50、
    1080P59.94、1080P29.97、720P59.94
    LAN:
Main Stream：
     1920×1080/1280×720/640×480@30/25/20/15/1
     0/5 fps;
Sub Stream：
     1280×720/640×360/640×480/320×240/320×18
     0@30/25/20/15/10/5fps;
The USB 3.0 output supports video formats
     including:
Main Stream：YUY2/NV12:
     1920×1080/1280×720/1024×576/800×600/800
     ×448/640×360/640×480/
    480×270/320×180@30/25/20/15/10/5fps;
MJPG/H264:
    3840×2160/2560×1440/1920×1080/1600×896/1
    280×720/1024×576/960
    ×540/800×600/800×448/720×576/720×480/6
    40×360/640×480/480×270/
    352×288/320×240@30/25/20/15/10/5fps;
    YUY2/NV12 max 1080P60
Optical Zoom 12X
Viewing Angle H：7.6°（N）～67.5°（W）
Iris Value F1.76 ～ F3.0±5%
Digital Zoom 16X
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D﹠3D
White Balance Auto/Manual/One-push/Specified color
temperature
Shutter Speed 1/25～1/20000
BLC On/Off
Dynamic
Range
Off、1 ～ 8
Video Adjustment Brightness、Contrast、Saturation、W&BMode、
Horizontal flip、vertical flip、Digital
Zoom、MinimumIllumination
SNR >50dB
