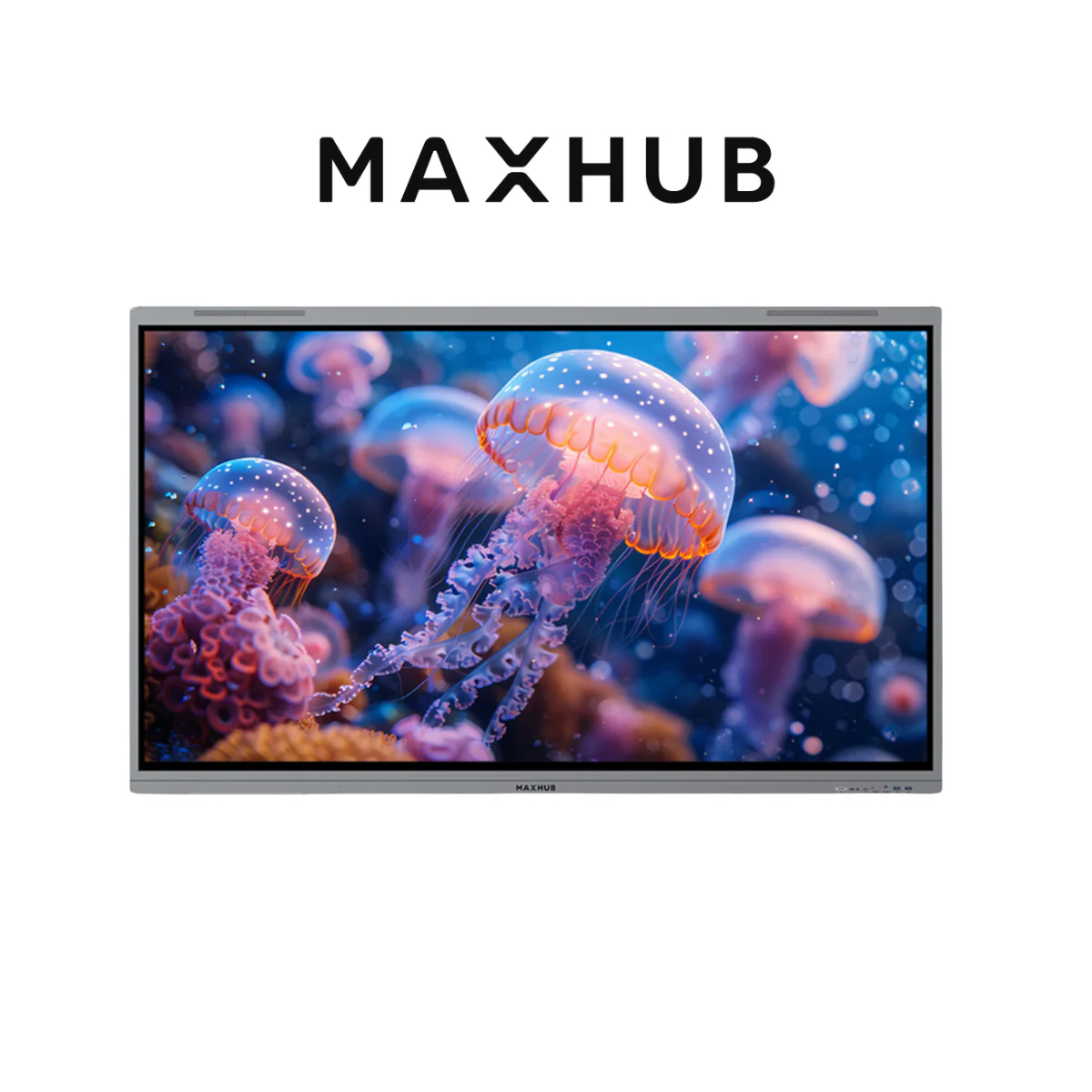

MAXHUB E3 Series – Interactive Flat Panel
Product Details
Secure payment via Razorpay | UPI, Cards, Net Banking, COD
| Product Model | E6530 | E7530 | E8630 |
|---|---|---|---|
| Display | |||
| Diagonal Size (inch) | 65 | 75 | 86 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Resolution | 3840(H)×2160(V) | 3840(H)×2160(V) | 3840(H)×2160(V) |
| Panel Brightness | 400 nits (typ.) 450 nits (max.) | 400 nits (typ.) 450 nits (max.) | 400 nits (typ.) 450 nits (max.) |
| Contrast Ratio | 5,000:1 (typ.) 50,000:1 (dynamic) | 5,000:1 (typ.) 50,000:1 (dynamic) | 3,000:1 (typ.) < br> 50,000:1 (dynamic) |
| Color Depth | 1.07B (10bit) | 1.07B (10bit) | 1.07B (10bit) |
| Color Gamut (typ.) | 98% sRGB | 98% sRGB | 98% sRGB |
| Color Accuracy | ΔE≤1 | ΔE≤1 | ΔE≤1 |
| Surface Technology | Anti-glare, 25% haze | Anti-glare, 25% haze | Anti-glare, 25% haze |
| Eyes Care | TÜV Flicker Free TÜV Low Blue Light | TÜV Flicker Free TÜV Low Blue Light | TÜV Flicker Free TÜV Low Blue Light |
| Refresh Rate | 60Hz | 60Hz | 60Hz |
| Response Time | 6.5ms | 6.5ms | 8ms |
| Backlight Unit | DLED | DLED | DLED |
| Touch System | |||
| Touch Technology | Infrared recognition | Infrared recognition | Infrared recognition |
| Touch Point | 40 points touch | 40 points touch | 40 points touch |
| Accuracy | ±1.5mm | ±1.5mm | ±1.5mm |
| MAXHUB Think&Ink | Yes | Yes | Yes |
| Built-in System | |||
| Operating System | Android 14.0 | Android 14.0 | Android 14.0 |
| Certification | Google EDLA certification | Google EDLA certification | Google EDLA certification |
| RAM | 8GB | 8GB | 8GB |
| ROM | 128GB | 128GB | 128GB |
| CPU | A72×4+A53×4 octa-core, 2.2GHz | A72×4+A53×4 octa-core, 2.2GHz | A72×4+A53×4 octa-core, 2.2GHz |
| GPU | Mali G52 MC3 | Mali G52 MC3 | Mali G52 MC3 |
| Connectivity | |||
| Input | HDMI IN × 3 USB 2.0 × 1 USB 3.0 × 4 Touch × 2 USB Type-C × 2 DP IN × 1 AUDIO IN × 1 VGA IN × 1 RS232 × 1 RJ45 IN × 1 TF Card Port × 1 | HDMI IN × 3 USB 2.0 × 1 USB 3.0 × 4 Touch × 2 USB Type-C × 2 DP IN × 1 AUDIO IN × 1 VGA IN × 1 RS232 × 1 RJ45 IN × 1 TF Card Port × 1 | HDMI IN × 3 USB 2.0 × 1 USB 3.0 × 4 Touch × 2 USB Type-C × 2 DP IN × 1 AUDIO IN × 1 VGA IN × 1 RS232 × 1 RJ45 IN × 1 TF Card Port × 1 |
| Output | HDMI OUT × 1 AUDIO OUT × 1 SPDIF × 1 RJ45 OUT × 1 | HDMI OUT × 1 AUDIO OUT × 1 SPDIF × 1 RJ45 OUT × 1 | HDMI OUT × 1 AUDIO OUT × 1 SPDIF × 1 RJ45 OUT × 1 |
| OPS Slot | Module slot × 1 | Module slot × 1 | Module slot × 1 |
| Wi-Fi Module Slot | Module slot × 1 | Module slot × 1 | Module slot × 1 |
| Wi-Fi Module (SI07B) | Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz | Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz | Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz |
| Bluetooth | 5.2 | 5.2 | 5.2 |
| Audio | |||
| Audio System | SkyWave Sound System | SkyWave Sound System | SkyWave Sound System |
| Sound Channel | 2.2 | 2.2 | 2.2 |
| Speaker Power | 2×8W+2×18W (output) 2×12W+2×25W (maximum) | 2×8W+2×18W (output) 2×12W+2×25W (maximum) | 2×8W+2×18W (output) 2×12W+2×25W (maximum) |
| Sound Pressure Level | 88 dB (1W, 1m) | 88 dB (1W, 1m) | 88 dB (1W, 1m) |
| Power | |||
| Power Supply | 100-240V~ 50/60Hz 3.5A | 100-240V~ 50/60Hz 4.0A | 100-240V~ 50/60Hz 4.5A |
| Power Consumption (standby) | ≤0.5W | ≤0.5W | ≤0.5W |
| Power Consumption (typ.) | 130W | 170W | 190W |
| Power Saving | Energy Star Certification | Energy Star Certification | Energy Star Certification |
| Optional Module | |||
| USB Camera | UC W31 | UC W31 | UC W31 |
| Video Bar | UC S07 | UC S07 | UC S07 |
| OPS Module | OPS62A/OPS72A | OPS62A/OPS72A | OPS62A/OPS72A |
| Sensor Box | WL10C | WL10C | WL10C |
| Mobile Stand | ST33M, ST23G, EST09 | ST33M, ST23G, EST09 | ST33M, ST23G, EST09 |
